UL 120lm/w 8ft 5ft rechargeable 18w 1200mm led tri-proof light

FOB Reference Price:Get Latest Price
US $10-40 / Pieces | 6 Piece/Pieces samples acceptable (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
LED Tri-proof Lights
Certification:
CE ROHS DLC UL CUL
Color Temperature:
2700-6500K
IP Rate:
IP65
Function:
Wicrowave Motion Sensor
Emergency:
3hrs battery backup
Power:
20W 25W 36W 50W 60W
Application:
Parking Lot warehouse etc
Length:
2ft 4ft 5ft 8ft
Warranty:
5 Years
Product Name:
LED Tri-proof Lights
Beam Angle:
270 degree
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month can produce more according to your needs.
Packaging & Delivery
Packaging Details
1pcs in a separate box, 6 boxes into 1 carton.
Port
shenzhen
Video Description

UL 120lm/w 8ft 5ft rechargeable LED batten light with battery

 -

Product Description

Tri-proof lights Specification:

Model TP-2FT-20W-NA TP-4FT-25W-NA
TP-5FT-36W-NA
Power consumption20W25W36W
Input voltage100-240VAC
Frequency50-60HZ
ColorWW/NW/CW
Color temp.(typical)3000/4000/5000/6500K
Luminous(typical)2160lm-2400lm2700lm-3700lm3888lm-4320lm
Efficacy(typical)120lm/w
CRI>82
Power Factor>0.92
Life time >50,000hrs
Housing MaterialPC+Aluminum
Beam Angle 270
Operating Temp.-25-45
Emergency(Customized)
6W/3H
Microwave motion sensor (Optional)Yes
Dimmable (Optional)
Yes
Warranty5 years



Features:

1. Fashionable and unique design, 270 degree beam angle.

2. Built-in Microwave motion sensor, light only when and where you need it.
3. Use Ni-MH battery, small volume, long-life span and ROHS compliant, the highest charging temperature is 70℃.
4. Built-in emergency backup, easy installation,  best choice for emergency lighting system.
5. Built-in aluminum heat sink ensures best heat  dissipation,Coated with V0 level PC improves the  product safety,> 5000V hi-pot.
6. Integrated and closed structure, IP65.

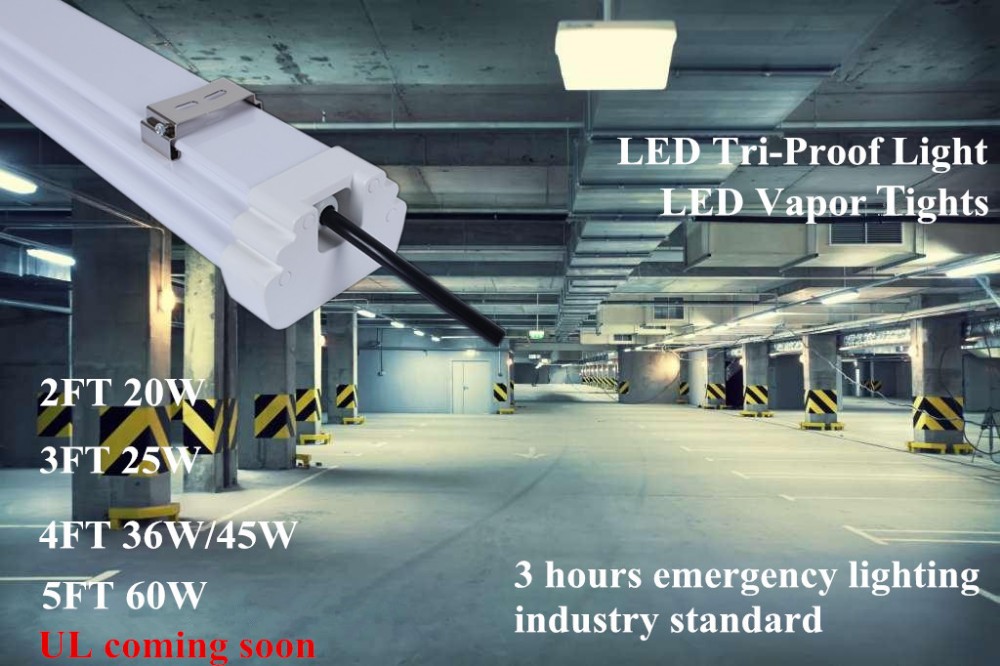

LED vapor lights

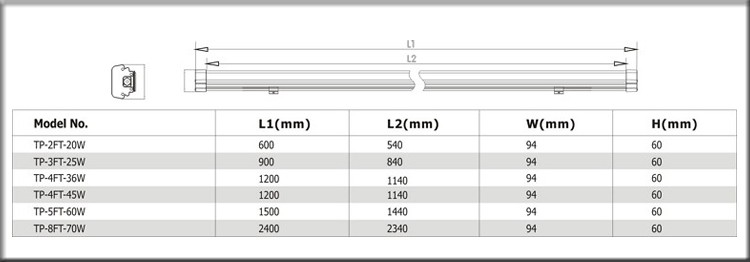

Tri-proof lights Dimension:



.jpg

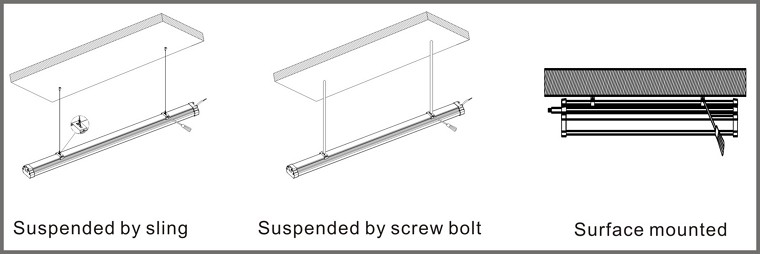

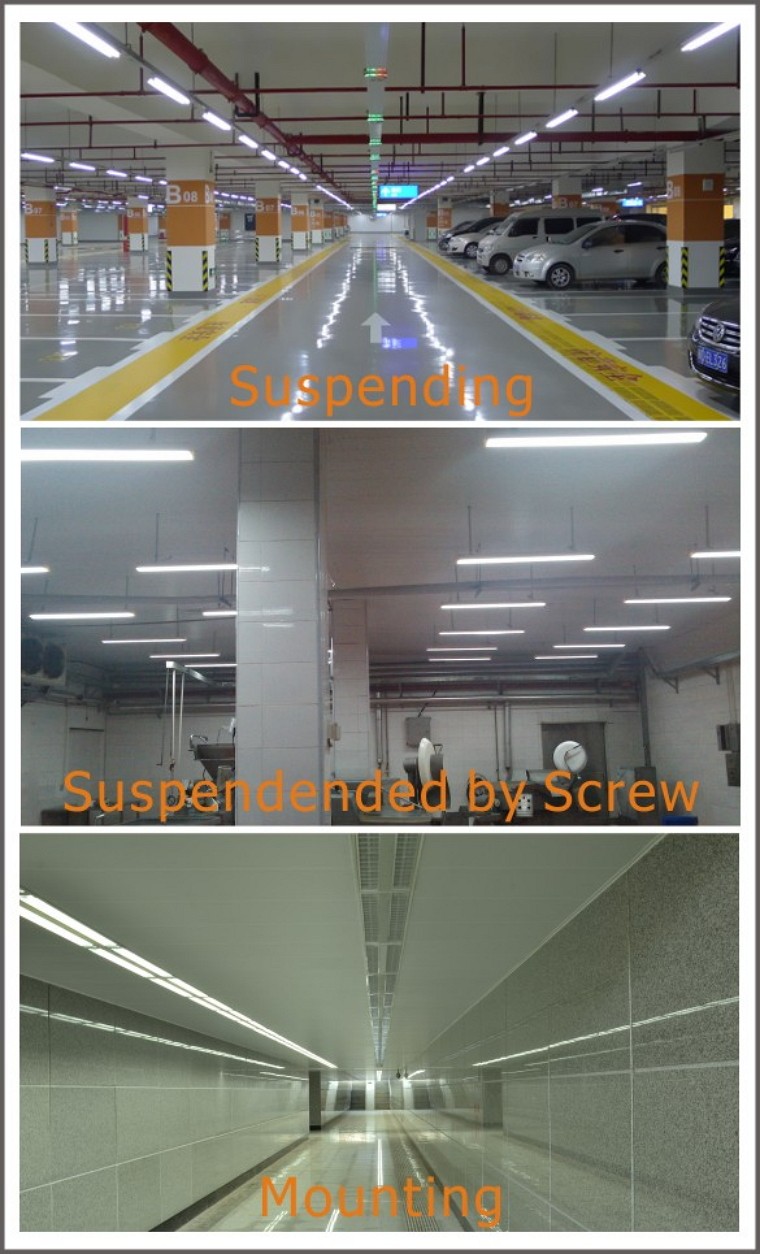

Tri-proof lamp fixture installation:

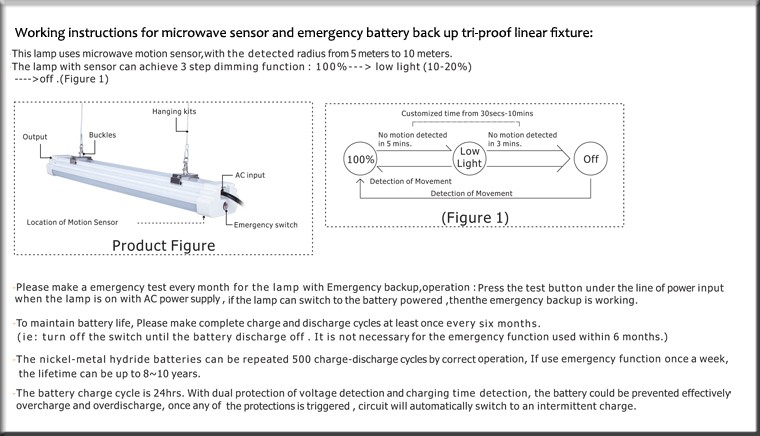

UL LED Tri-proof lieaner fixture Installation instruction:



.jpg

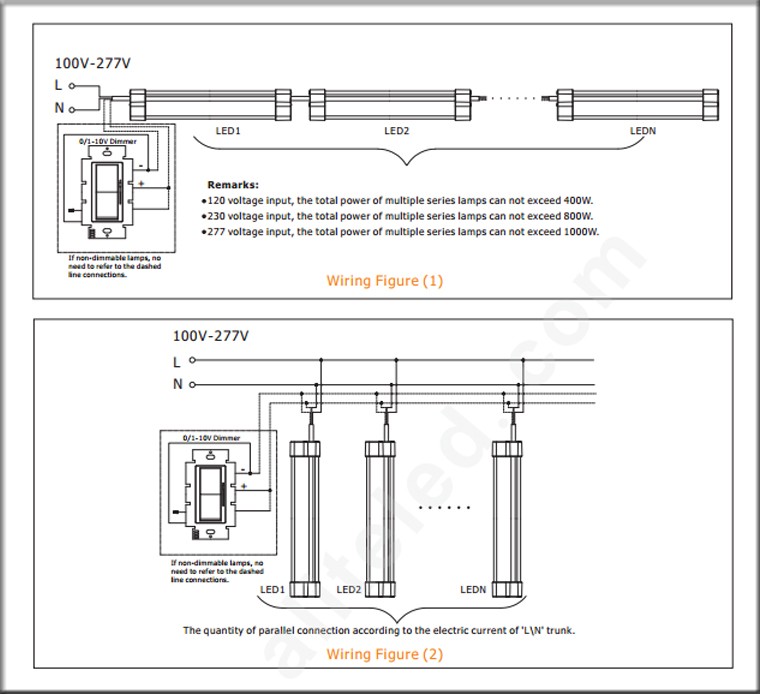

LED Tri-proof tube mode of connection:



.jpg



IP65 LED Tri-proof Lighting Application:

Parking Lot, Subway, Large Supermarket
Food Processing Factory, Animal & plant Farm
School &Hospital, Gas Station, MTR Station, Airport, Office indoor lighting




Packaging & Shipping

.jpg

Model No.

Net Weight(kg)

Qty(pcs/carton)

Gross Weight/Carton(kg

Carton Size (mm)

TP-2FT-20W

1.1

6

7.76

L655*W210*H235

TP-3FT-25W

1.5

6

10.76

L970*W220*H230

TP-4FT-36W

1.78

6

12.86

L1270*W230*H240

TP-4FT-45W

1.78

6

12.86

L1270*W230*H240

TP-5FT-60W

2.18

6

21.26

L1565*W210*H235

TP-8FT-70W

3.56

6

25.72

L2440*W210*H235

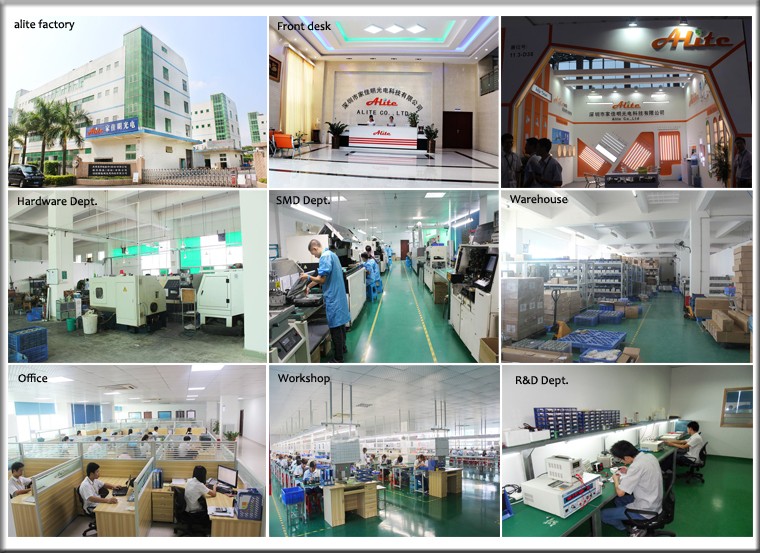

Company Information

Our factory have 5000 sq.m and 150 workers ,which are assuring the great production capability and prompt delivery time. Although We are not from Taiwan, but we could promise for our products, and also we have very good warranty Policy for our clients.Main products are LED Panel ,LED Tube, LED Spotlight, LED Bulb, LED PL lamps etc,with DLC, EnergyStar, UL, CUL, PSE, SAA, ERP, FCC, CE, ROHS certifications, also got ISO9001:2008 international standard quality system certification.

Look forward to be your reliable partner.

.jpg


FAQ

1. What’s the advantages of the products ?

    Emergency backup and sensor are inside, not outside, easier installation.

2. What’s the battery used ?

    The nickel-metal hydride batteries.

3. What's the sensor function ?

    100%---> low light (10-20% customized)---->off

Our Services

With the functions of 0-10v dimmable, Non-dimmable, Emergency  Backup and sensor,

they could be mixed as your requirements.

5-7 days for sample orders, 15-20days for bulk orders.

Customized label ( or silk printed) with your logo.

Customized packages and details.

ODM  available.
